LIFTING INNOVATION

Multi Directional

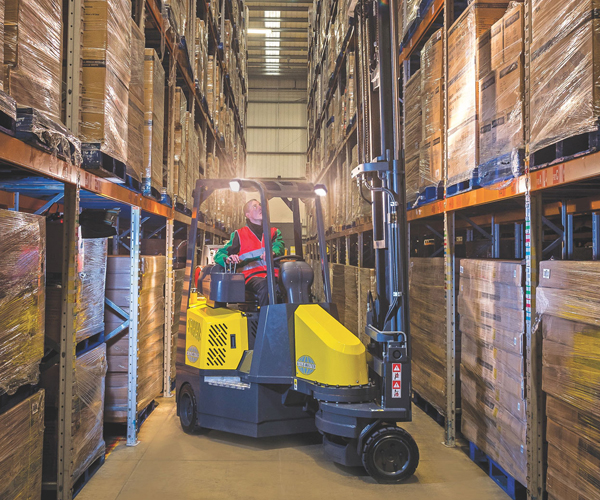

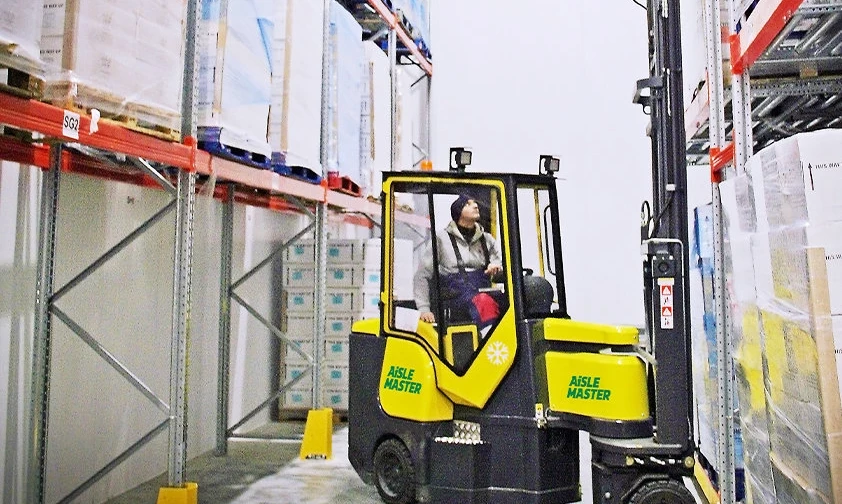

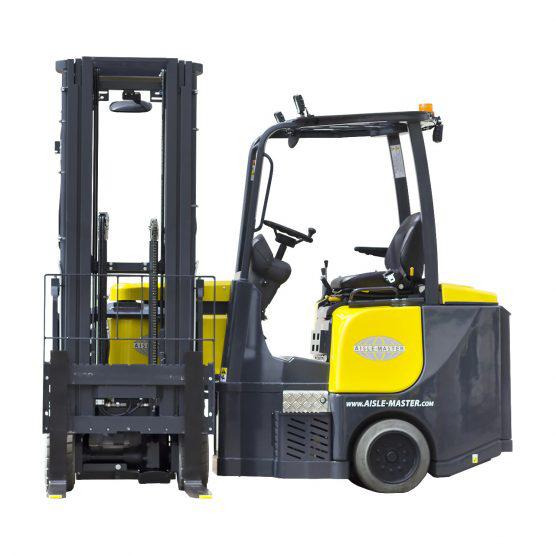

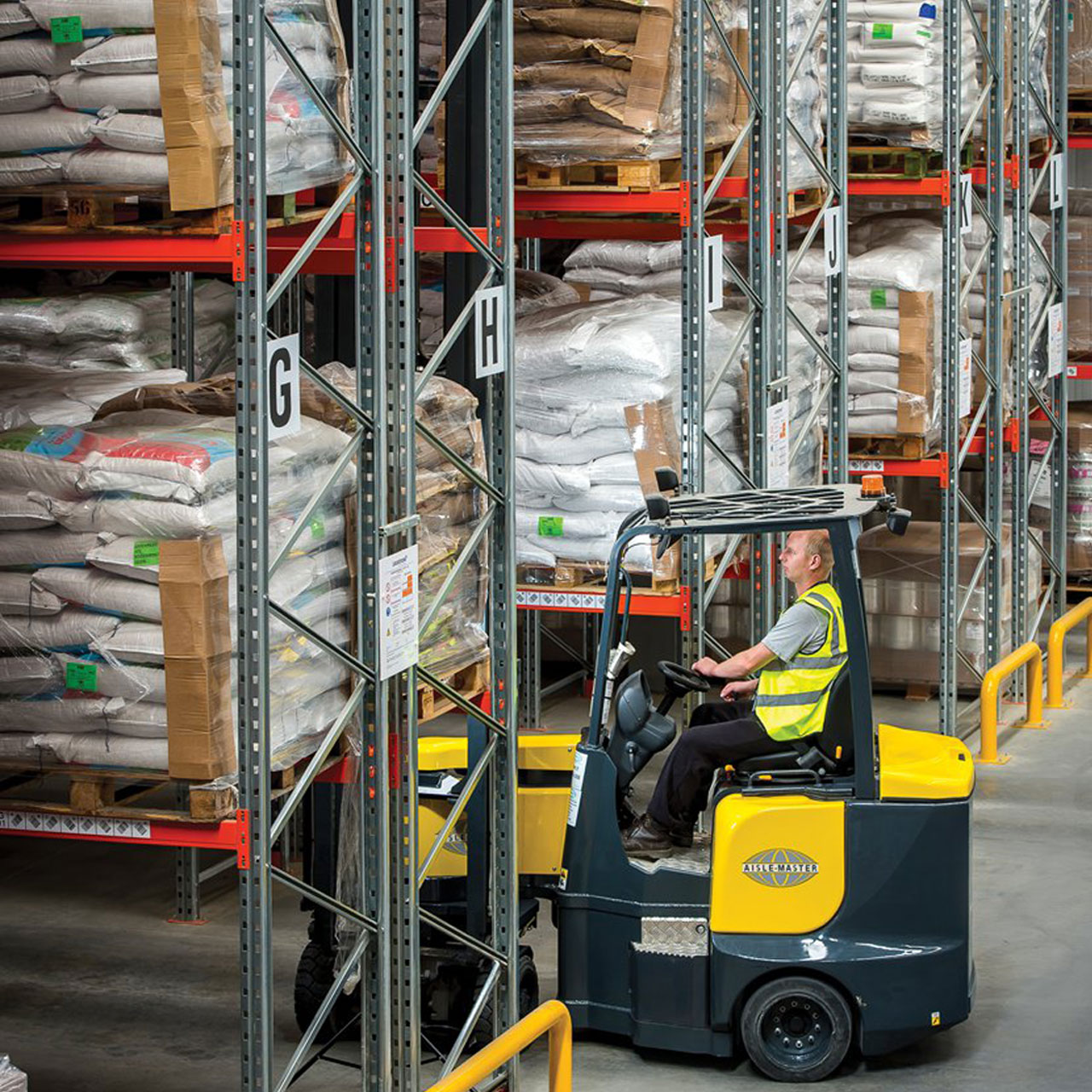

AC Electric Machine


All Aisle Master’s electric powered models now benefit from AC technology as standard. This puts the company firmly at the forefront of battery powered technology in the articulated sector. The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

Telehandler Image
Capacity: 1500 kg - 2500 kg
Model & Specifications

Model & Specifications

Increasing storage – reducing costs
STANDARD SPECIFICATION 15E/20SE/20SHE/20WHE
Mast Range 4300 mm to 15000 mm
Overhead Guard* 2270 mm
Capacity 1500 kg to 2500 kg
Ground Speed* 16 kph
Lift Speed (Laden) 0.4 m/s
Lift Speed (Unladen) 0.5 m/s
Front tyre size* 412 x 174 mm
Rear tyre size* 457 x 178/229 mm
Gradeability (Laden) 12%
Gradeability (Unladen) 15%
Battery Capacity Range 620 Ah to 930 Ah
Battery Voltage 48v
Weight of truck (without battery) 5150 kg to 5510 kg
Weight of truck (with battery) 6400 kg to 7100 kg
Standard Colour* Yellow and Grey
Standard Seat* KAB

*Item of specification can be adjusted/modified to suit customer application and requirements. Fork length and lift height can be altered to suit customer application and requirements.

Multi Directional

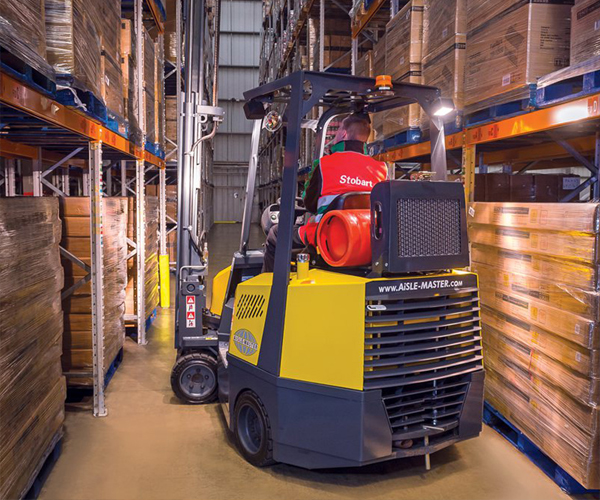

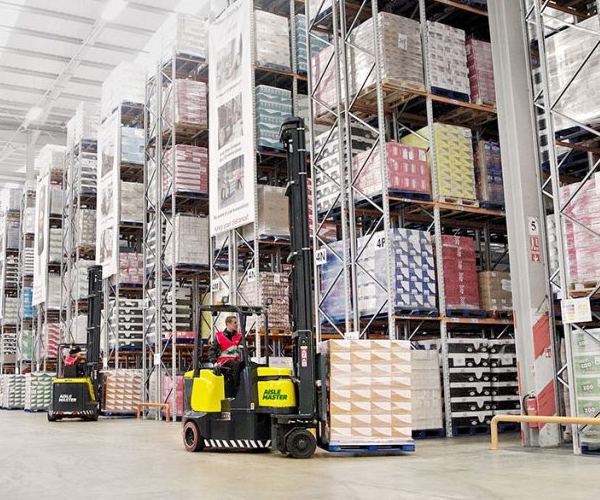

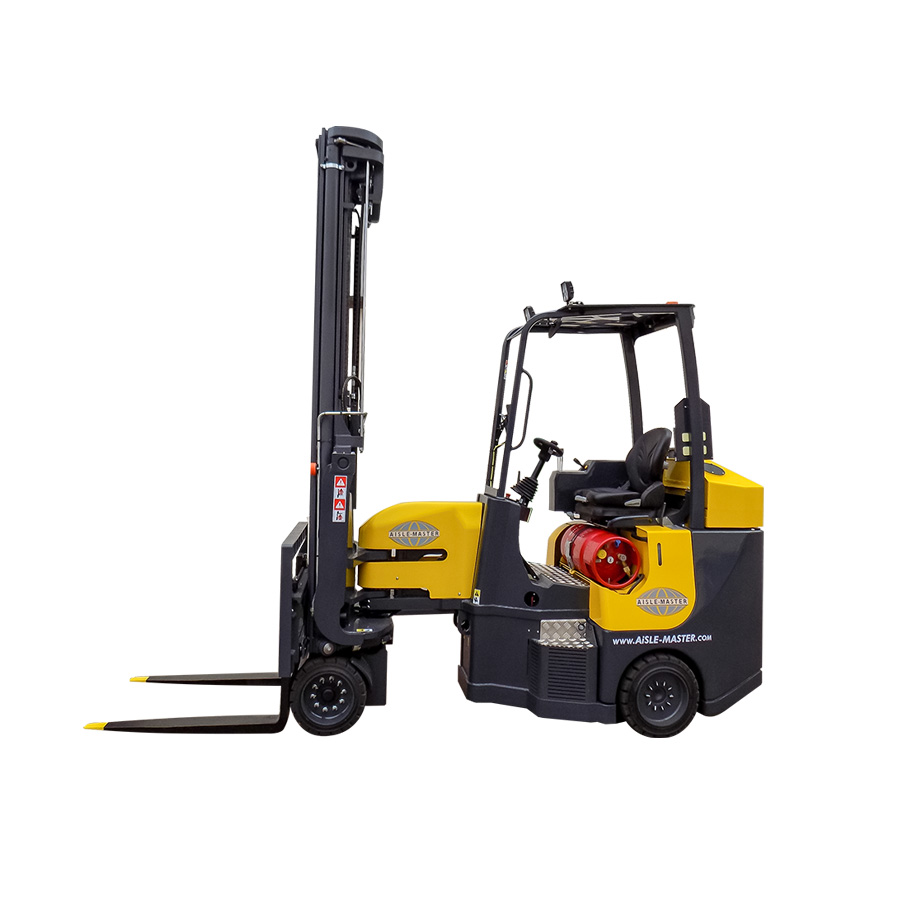

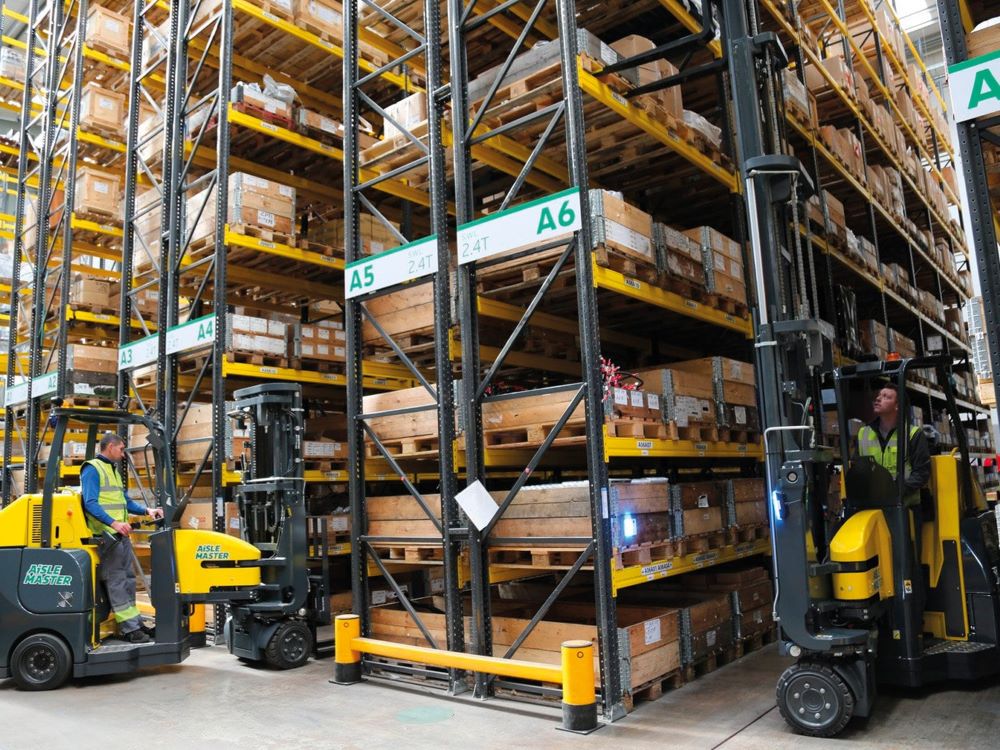

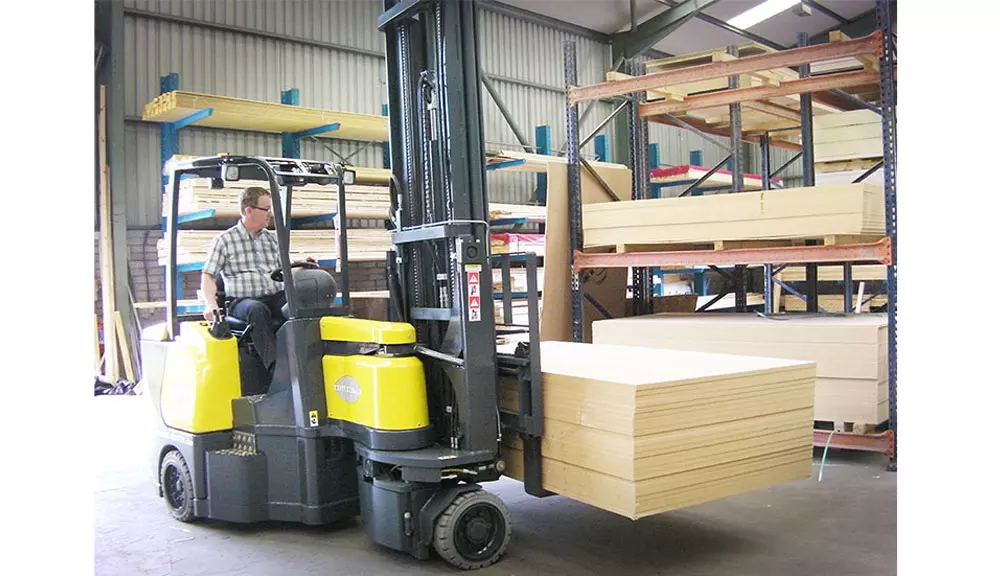

Aisle Master LPG


Aisle Master is acknowledged as the pioneer of LPG power in the articulated forklift sector. Aisle Masters are fitted with a closed loop fuel system as standard, to improve emissions and fuel economy whilst a specially designed engine bay cooling system ensures the effective running of the engine for maximum uptime and reliability. The main benefit of LPG is reduced emissions levels, ideal for indoor and outdoor operation, making it useful for trucks that are used in almost all industries, even the most emission conscientious. LPG power also offers 24/7 operation with no loss of power.

Telehandler Image
Capacity: 2000 kg
Model & Specifications

Model & Specifications

Advanced technology & cleaner emissions
STANDARD SPECIFICATION 20S/20WH
Mast Range 4300 mm to 12400 mm
Overhead Guard* 2311 mm
Capacity 2000 kg
Ground Speed* 11kph
Lift Speed (Laden) 0.4 m/s
Lift Speed (Unladen) 0.5 m/s
Front tyre size* 406 x 178 mm
Rear tyre size* 457 x 200 mm
Gradeability (Laden) 15%
Gradeability (Unladen) 15%
Engine 3.0l GM Water Cooled
Weight of truck 6400 kg to 7000 kg
Standard Colour* Yellow and Grey
Standard Seat* KAB

*Item of specification can be adjusted/modified to suit customer application and requirements. Fork length and lift height can be altered to suit customer application and requirements.

Multi Directional

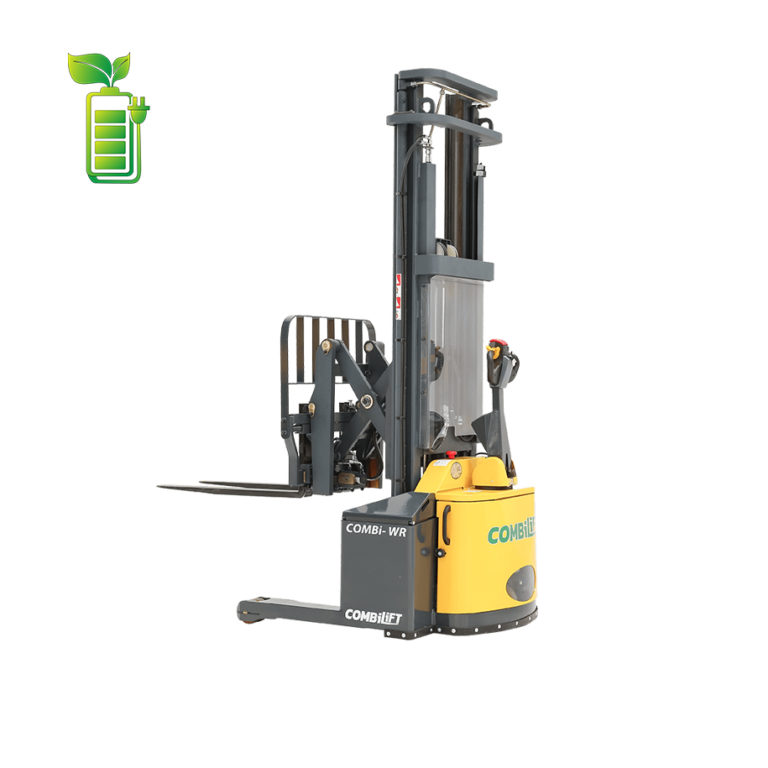

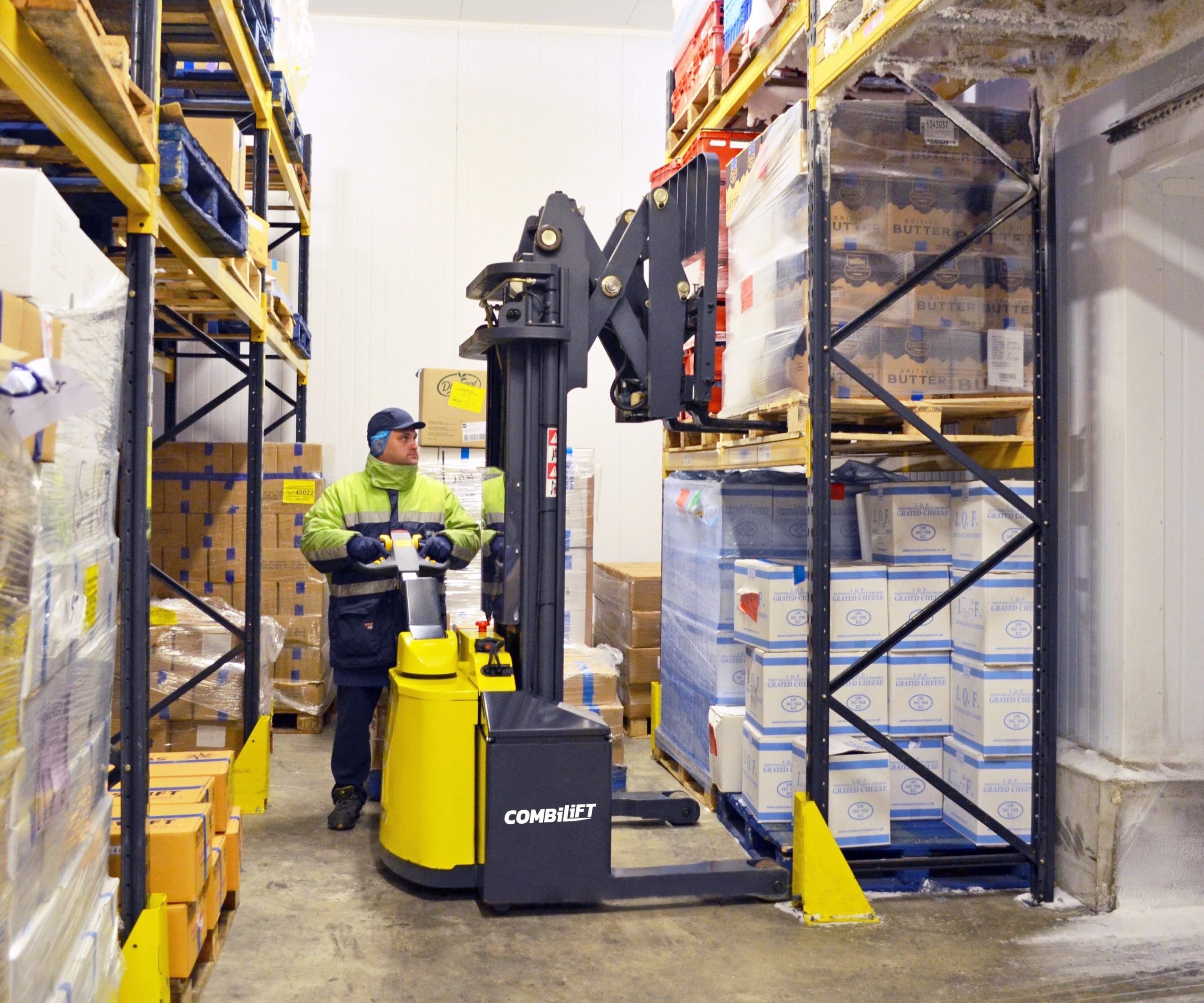

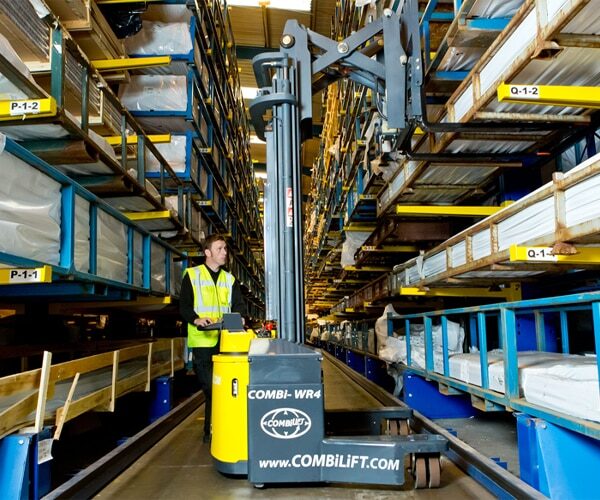

Combi-WR Walkie Reach-Stacker


Incorporating the benefits of AC technology in its traction, pump and steering motors, the Combi-WR has a lift height that can be tailored to your application with load capacities up to 1,450kg. Electronic power steering and fingertip controls ensure effortless operation, even in the most demanding environments.

Telehandler Image
Capacity: 1450 kg @ 3200 mm Lift
Model & Specifications

Model & Specifications

Winner of the FLTA Award for Ergonomics 2014
DESCRIPTION STANDARD
Mast Range 3000 mm to 4900 mm
Overall Length 1950 mm
Fork Travel 590 mm
Ground Clearance Under Mast 80 mm
Ground Clearance to Centre of Wheelbase 50 mm
Width 1320 mm
Outside Spread of Fork Arms 815 mm
Track Front 1165 mm
Frame Opening 1008 mm
Load Centre Distance 600 mm
Overhang Front 603 mm
Wheelbase 1172 mm
Overhang Back 175 mm
Fork Side Shift 80 mm Left /80 mm Right
Length from Face of Fork 880 mm
Fork Backward Tilt
Fork Forward Tilt
Minimum Outside Radius 1350 mm
Leg Height 127 mm
Leg Length 530 mm
Capacity 1450 kg @ 3200 mm Lift
Unladen Weight 2500 kg / 2600 kg / 2700 kg
Maximum Ground Speed 6 Km/h
Gradeability 5%
Battery Capacity 24V / 270 Ah
Fork Section 35 mm x 100 mm x 1070 mm
Front Tyre x (Polyurethane) OD 127 mm / Width 75 mm
Rear Tyre (Vulkollan) OD 250 mm / Width 75 mm
Standard Colour Yellow and Grey
AC Electric Traction Motor 24V / 2.5 kW
AC Electric Pump Motor 24V / 5 kW
