Truck

Wide-body Dump Trucks

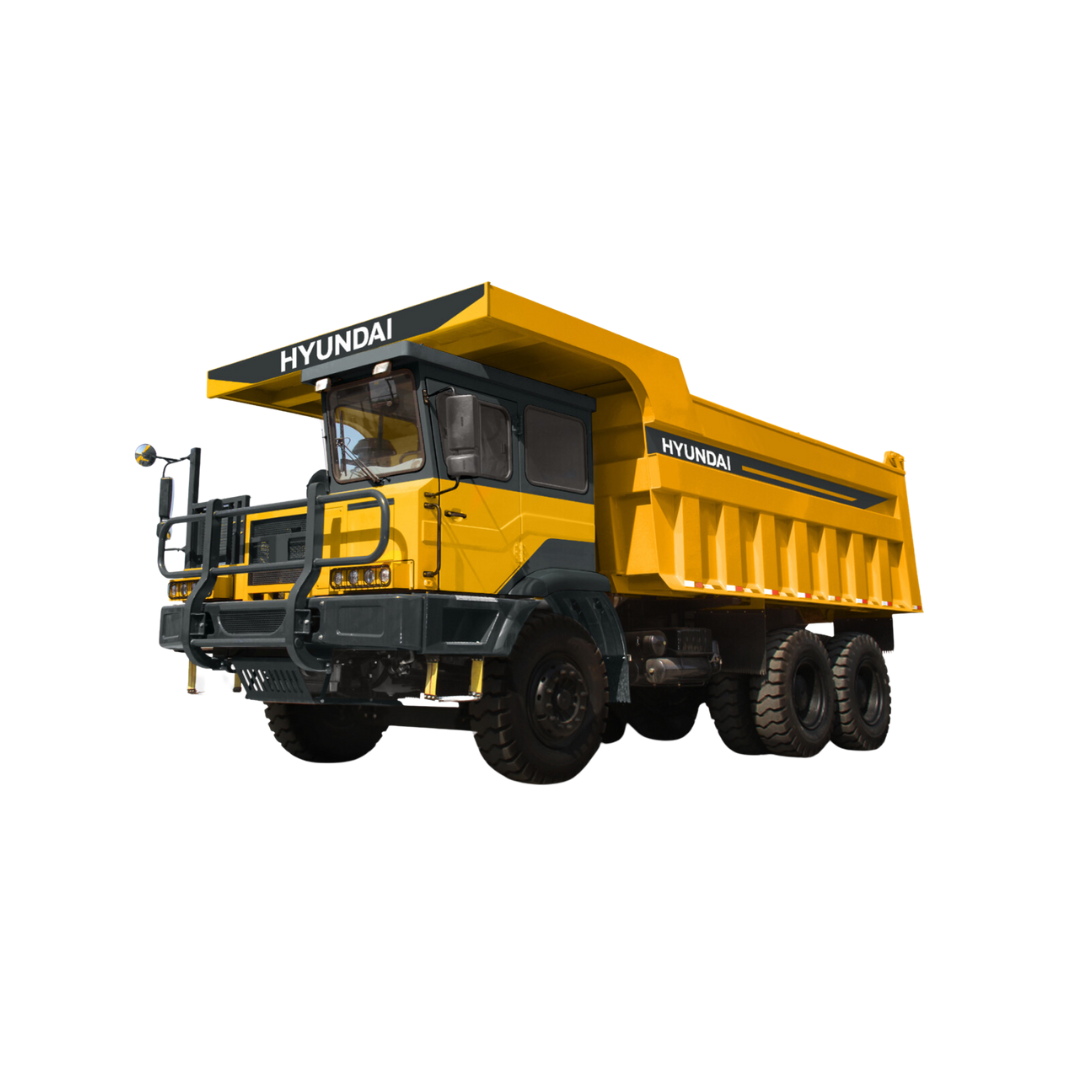

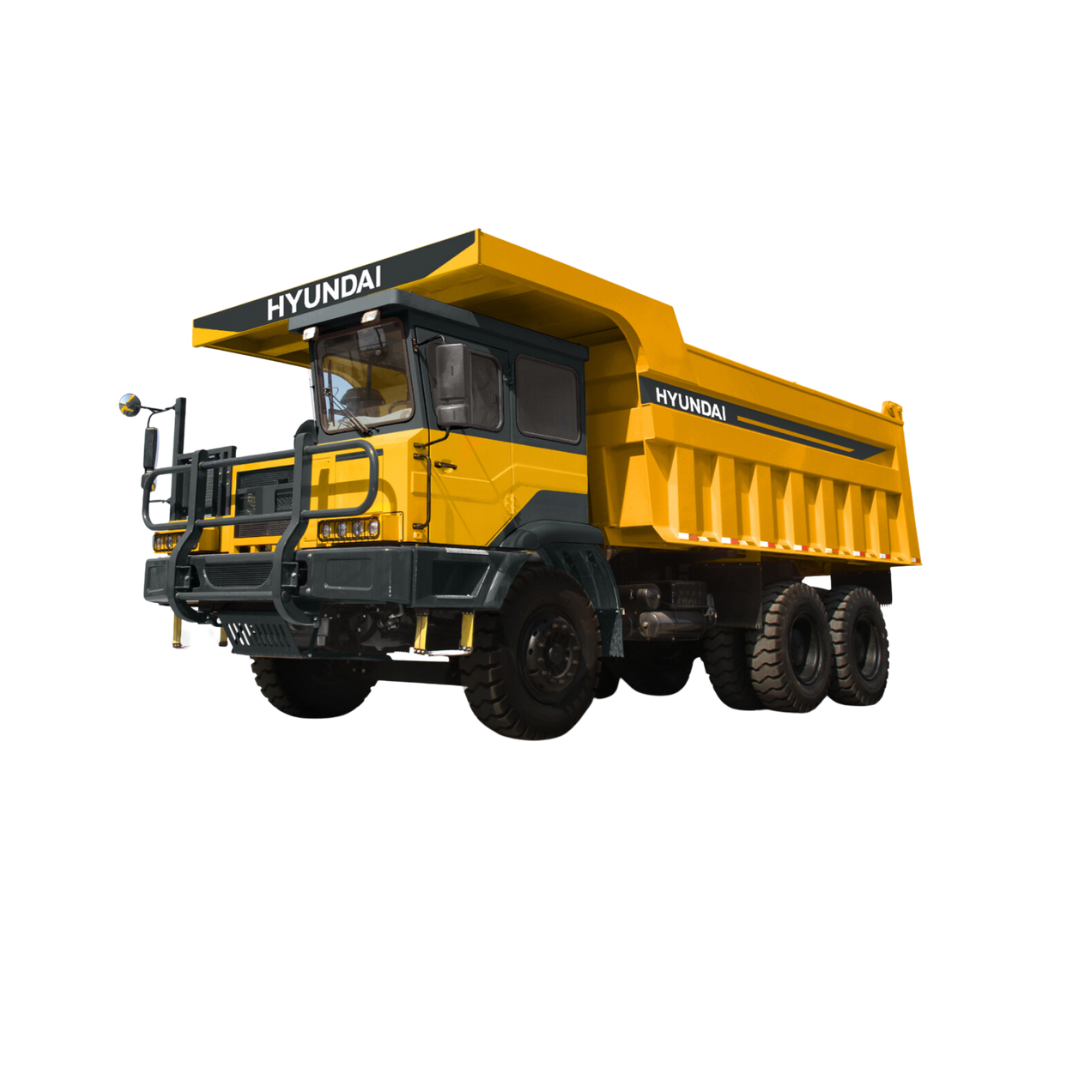

Hyundai Wide Body Truck Solution not only is this truck equipped with a powerful engine, but it also delivers agile speed to enhance productivity and performance. Designed with efficiency in mind, it ensures exceptional fuel economy, ultimately reducing your operational costs. Moreover, it provides a comfortable driving experience for your operators, ensuring convenience and satisfaction during long hours of use. With its combination of power, efficiency, and operator comfort, the Hyundai Wide Body Truck stands out as the ultimate solution for your transportation needs.

Capacity: 30 - 35 ton

Model & Specifications

HDT90 - HDT105S

Model	Operating Weight	Engine Model	Emission	Rate Power	Rated Payload	Main Pumps Rated Flow	Fuel Tank	Hydraulic Tank	Travel speed (forward, Maximum)	Travel speed (Reverse, Maximum)	Overall length	Overall height	Overall width	Inner turning radius
HDT90	30 ton	WEICHAI 530 HORSE POWER	TIER 3	460hp/2,100 rpm	60 ton	220 ℓ/min	500 ℓ	200 ℓ	49 km/h	7.5 km/h	9,680 mm	3,770 mm	3,750 mm	9,500 mm
HDT90S	30 ton	WEICHAI 460 HORSE POWER	TIER 3	530hp/2,100 rpm	60 ton	250 ℓ/min	500 ℓ	200 ℓ	40 km/h	5 km/h	9,160 mm	3,770 mm	3,750 mm	7,550 mm
HDT105	35 ton	WEICHAI 530 HORSE POWER	TIER 3	560hp/2,100 rpm	70 ton	250 ℓ/min	600 ℓ	200 ℓ	49 km/h	7.5 km/h	10,000 mm	4,150 mm	3,750 mm	9,500 mm
HDT105S	35 ton	WEICHAI 530 HORSE POWER	TIER 3	530hp/2,100 rpm	70 ton	250 ℓ/min	600 ℓ	200 ℓ	40 km/h	4 km/h	9,360 mm	4,160 mm	3,750 mm	8,000 mm

Truck

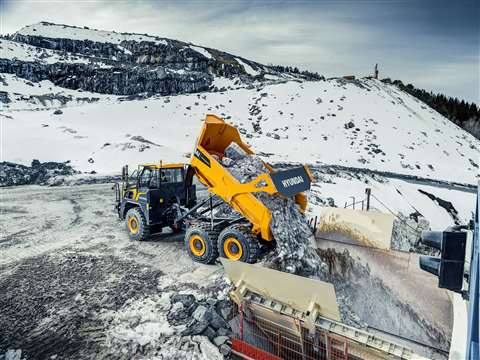

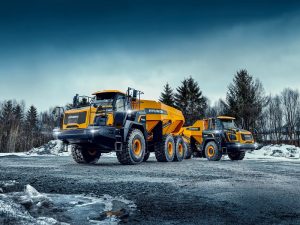

Articulated Dump Trucks

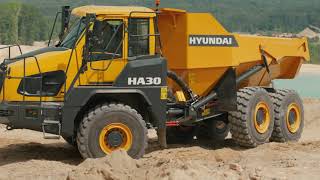

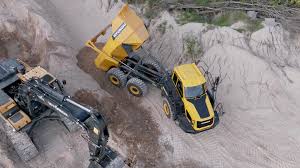

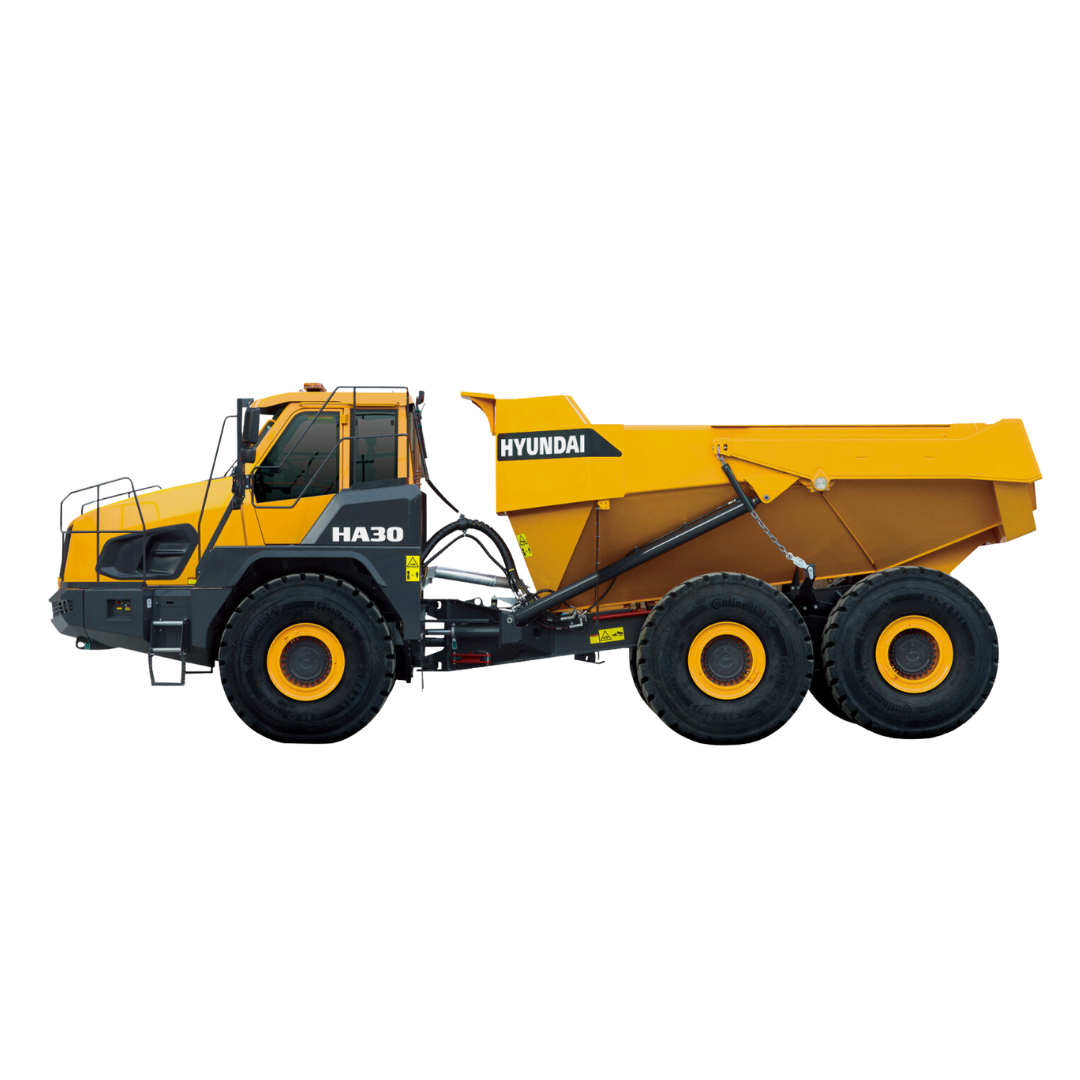

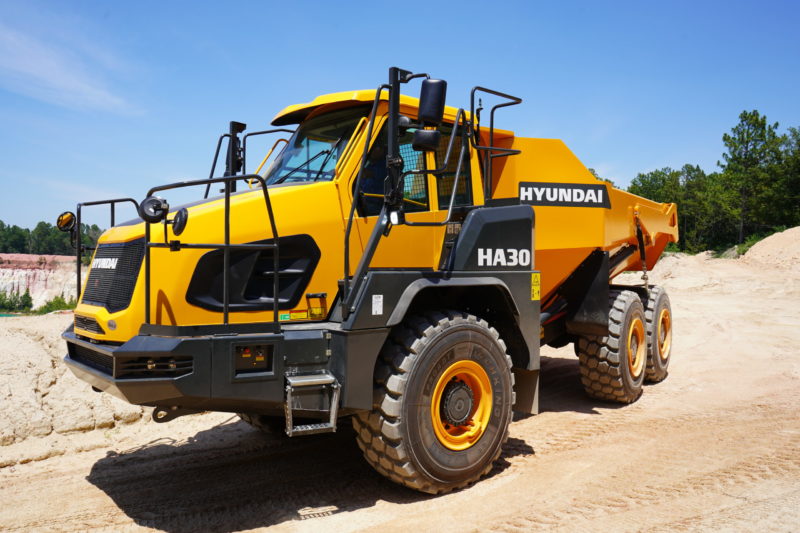

Hyundai's articulated dump truck, the HA30A, is built for industries like mining and construction, offering a permanent six-wheel drive for maximum traction and stability. Its compact design ensures superior maneuverability, while the ergonomic cabin with a 7-inch LCD enhances operator comfort. With a payload capacity of 28 tons, it efficiently handles heavy-duty tasks. Combining strength, reliability, and comfort, this truck delivers exceptional performance, making it a standout choice for material transport.

Capacity: 23.4 ton

Model & Specifications

HA30

Model	Operating Weight	Engine Model	Emission	Rate Power	Rated Payload	Main Pumps Rated Flow	Fuel Tank	Hydraulic Tank	Travel speed (forward, Maximum)	Travel speed (Reverse, Maximum)	Overall length	Overall height	Overall width	Inner turning radius
HA30	23.4 ton	SCANIA DC 9	TIER 4 FINAL	375hp/2,100 rpm	28 ton	294 ℓ/min	335 ℓ	95 ℓ	55 km/h	16 km/h	95,550 mm	3,604 mm	3,499 mm	3,995 mm
HA45	30,5 ton	SCANIA DC 13	TIER 4 FINAL	500 hp/2,100 rpm	41 ton	294 ℓ/min	530 ℓ	100 ℓ	55 km/h	17 km/h	10,673 mm	3,850 mm	3,990 mm	4,215 mm

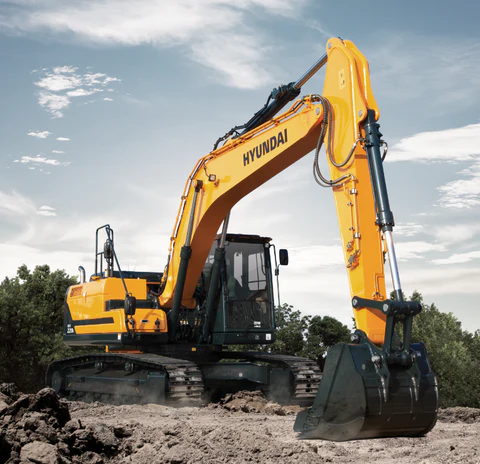

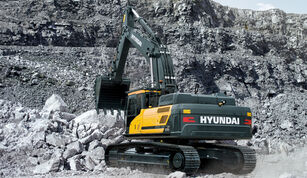

Excavator

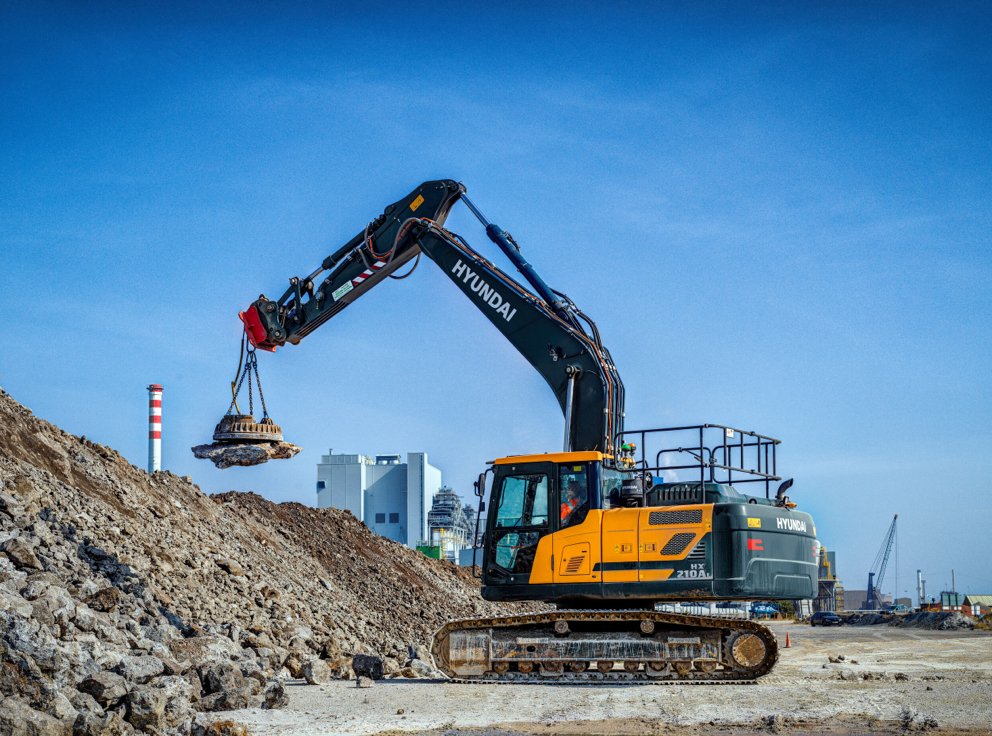

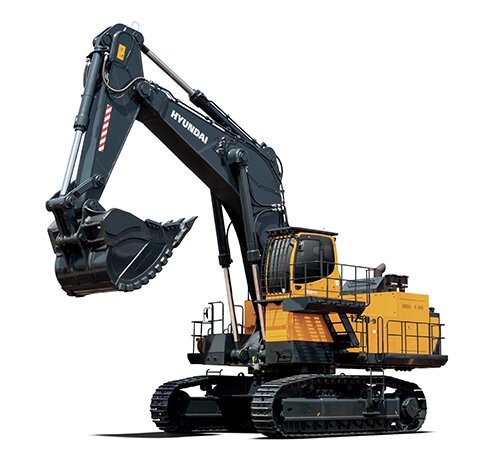

Hyundai excavators offer several outstanding features that make them a superior choice for various applications. They are equipped with a robust and extended undercarriage frame, ensuring exceptional durability and stability. The fuel-efficient engines significantly reduce operating costs while maintaining high performance. Advanced electro-hydraulic controls optimize production efficiency, enabling precise and smooth operation. Hyundai compact excavators seamlessly combine power, efficiency, and reliability, making them a versatile option for diverse tasks. Their compact size facilitates easy mobilization and maneuverability in confined spaces. Additionally, most Hyundai excavators are powered by the trusted Cummins Engine and equipped with the reliable Kawasaki Main Pump, enhancing their overall dependability and performance.

Capacity: 5.56 - 118 ton

Model & Specifications

HX55S - R1250-9

Model	Operating Weight	Engine Model	Engine Type	Rate Power	Bucket Capacity	Main Pump Flow	Fuel Tank	Hydraulic Tank	Swing Speed	Digging Force	Max. Digging Reach	Max. Digging Depth	Max. Digging Height	Max. Dumping Height
HX55S	5.56 ton	YANMAR 4TNV94L	TIER 2	48.5hp/2200rpm	0.18 m³	138 ℓ/min	118.5 ℓ	70 ℓ	10.9 rpm	4670 kgf	6110 mm	3730 mm	5740 mm	4040 mm
HX75S	7.42 ton	YANMAR 4TNV98Z	TIER 2	59.5hp/2100rpm	0.32 m³	158 ℓ/min	140 ℓ	75 ℓ	10.9 rpm	5700 kgf	6335 mm	4015 mm	7175 mm	5080 mm
HX210HD	20.83 ton	HYUNDAI HM5.9	TIER 2	148hp/2000rpm	0.92 m³	2 × 222 ℓ/min	340 ℓ	160 ℓ	12.2 rpm	10900 kgf	9980 mm	6730 mm	9600 mm	6780 mm
HX220HD	20.83 ton	HYUNDAI HM5.9	TIER 2	148hp/2000rpm	0.92 m³	2 × 222 ℓ/min	340 ℓ	160 ℓ	12.2 rpm	10900 kgf	9980 mm	6730 mm	9600 mm	6780 mm

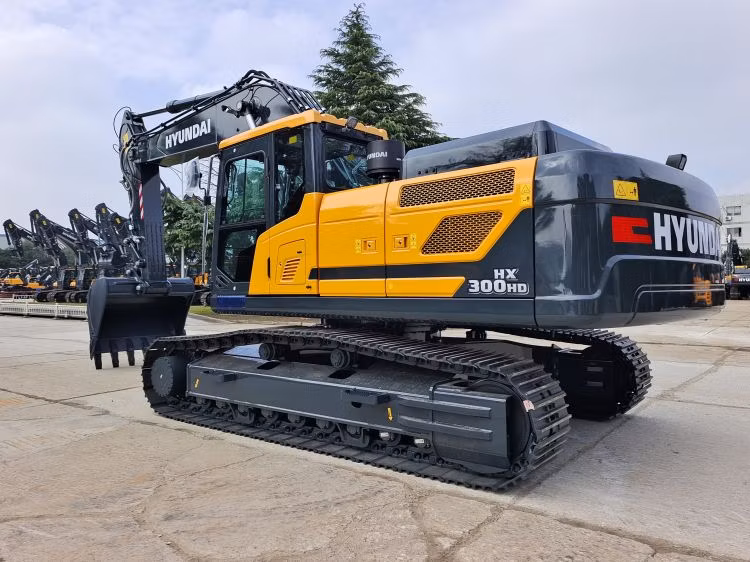

HX300HD	30.2 ton	CUMMINS QSB6.7	TIER 4	242hp/1950rpm	2.1 m³	2 × 394 ℓ/min	500 ℓ	190 ℓ	11.6 rpm	15500 kgf	10630 mm	7300 mm	10160 mm	7110 mm
HX340HD	33 ton	HYUNDAI HM8.3	TIER 2	260hp/2000rpm	2.3 m³	2 × 306 ℓ/min	600 ℓ	275 ℓ	11.6 rpm	21280 kgf	10830 mm	7340 mm	11060 mm	7260 mm
HX500L	49.9 ton	CUMMINS / X12	TIER 2	335hp/2100rpm	3.6 m³	2 × 394 ℓ/min	660 ℓ	450 ℓ	8.6 rpm	22160 kgf	12250 mm	8100 mm	11750 mm	7710 mm
R850LC-9	84 ton	CUMMINS QSX15	TIER 3	510hp/1800rpm	5.2 m³	2 × 504 ℓ/min	940 ℓ	425 ℓ	6.2 rpm	49310 kgf	12560 mm	8470 mm	11760 mm	7500 mm
R1250-9	118 ton	CUMMINS QSK23	TIER 2	760hp/1800rpm	8.57 m³	2 × 504 ℓ/min	1475 ℓ	670 ℓ	6.4 rpm	64690 kgf	12630 mm	8820 mm	12420 mm	7790 mm

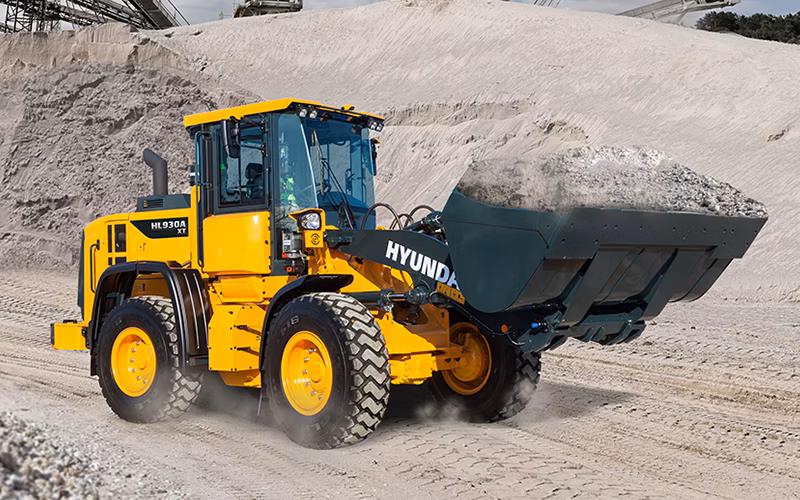

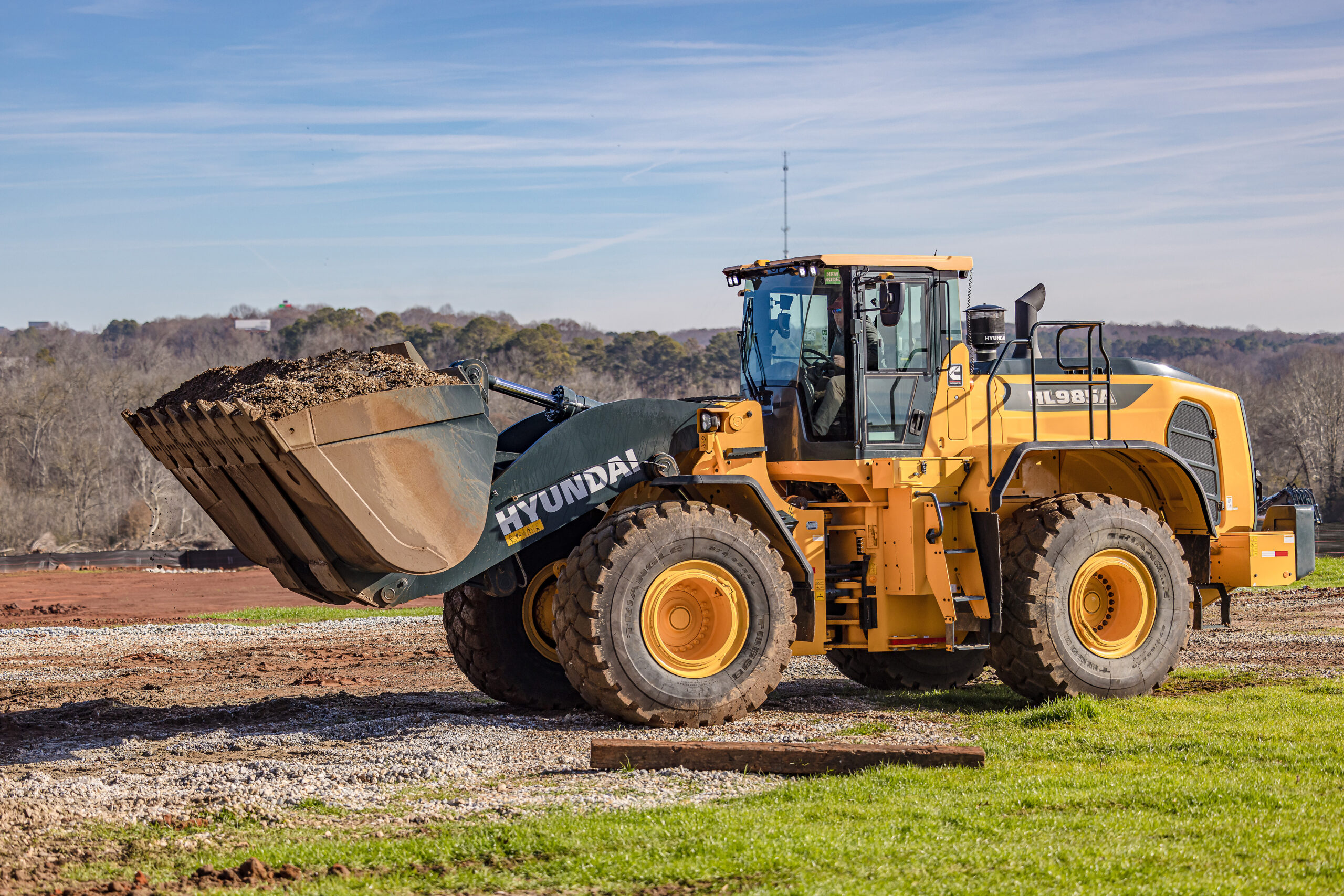

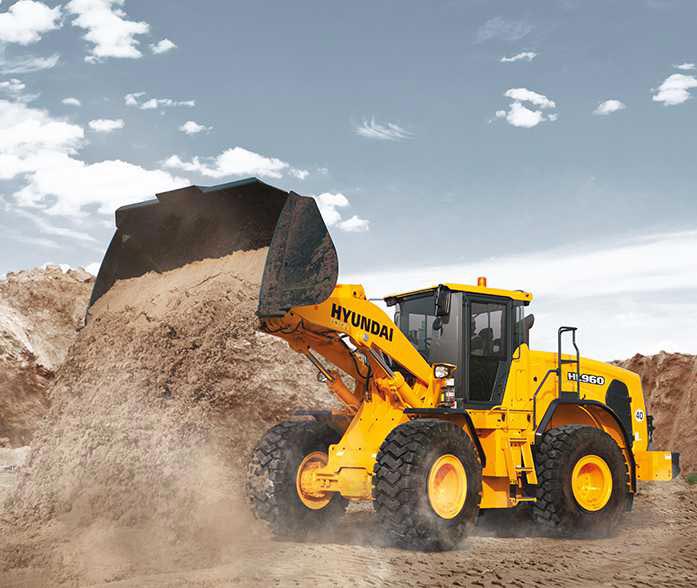

Loader

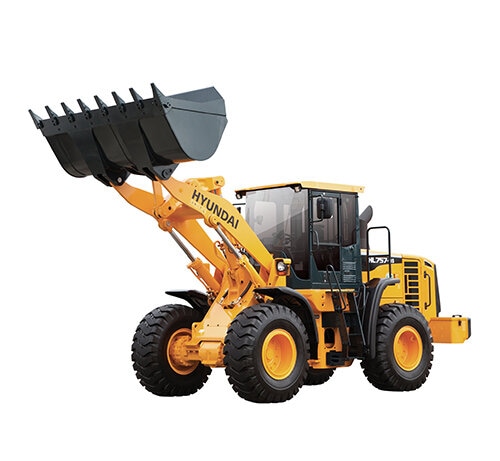

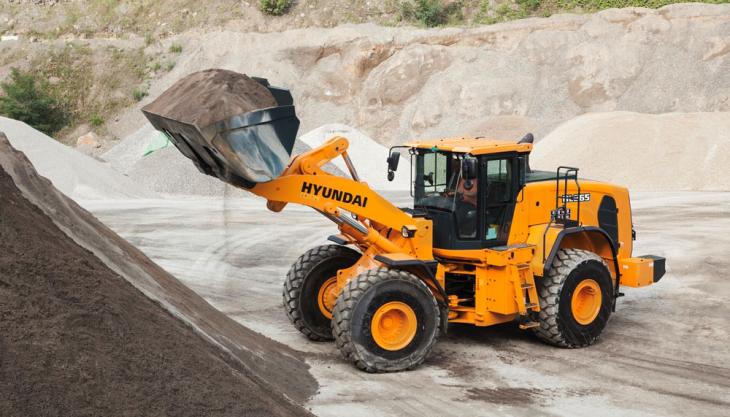

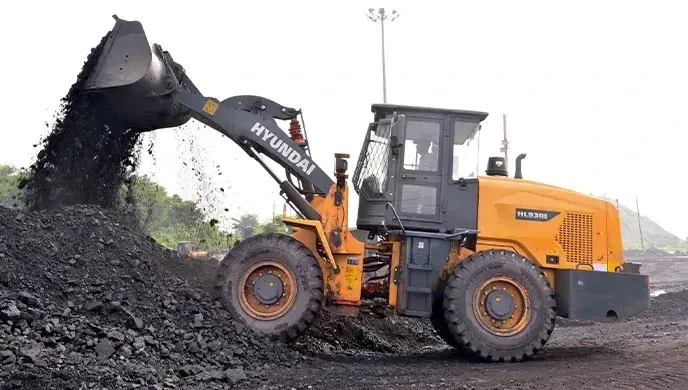

Hyundai loaders boast several exceptional advantages that make them an ideal choice for demanding tasks. Built for long-term durability, these loaders deliver reliable performance in challenging conditions. They are designed for effortless operation and superior comfort, ensuring ease of use for operators. Equipped with large, durable buckets, Hyundai loaders maximize productivity by handling significant loads efficiently. The spacious operator-friendly cabins offer excellent visibility and are outfitted with advanced features such as suspension seats, centralized monitoring panels, and air purification filters for a comfortable and safe working environment. Many Hyundai loader models comply with European Stage V emission standards, reflecting their commitment to environmental sustainability. Additionally, the loaders feature powerful and precise hydraulic systems, a compact turning radius for superior maneuverability, and evenly distributed power and weight, ensuring exceptional stability on difficult terrain.

Capacity: 10.3 & 17.3 ton

Model & Specifications

HL635L & HL665L

Model	Operating Weight	Engine Model	Engine Type	Rate Power	Bucket Capacity	Travel Speed
HL635L	10.3 ton	WEICHAI WP6G125E23	TIER 2	217hp/2,000rpm	1.7 m³	5.1 sec
HL665L	17.3 ton	WEICHAI WD10G220E23	TIER 2	59.5hp/2100rpm	3 m³	5.1 sec

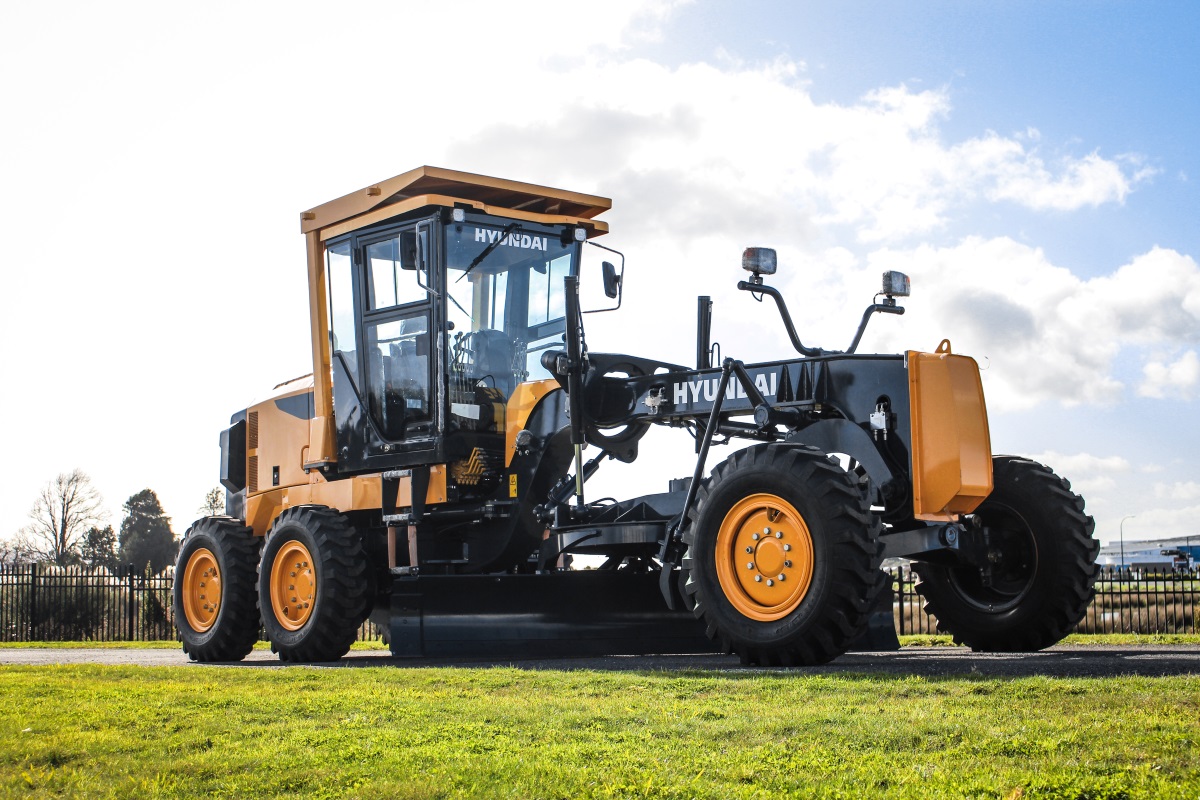

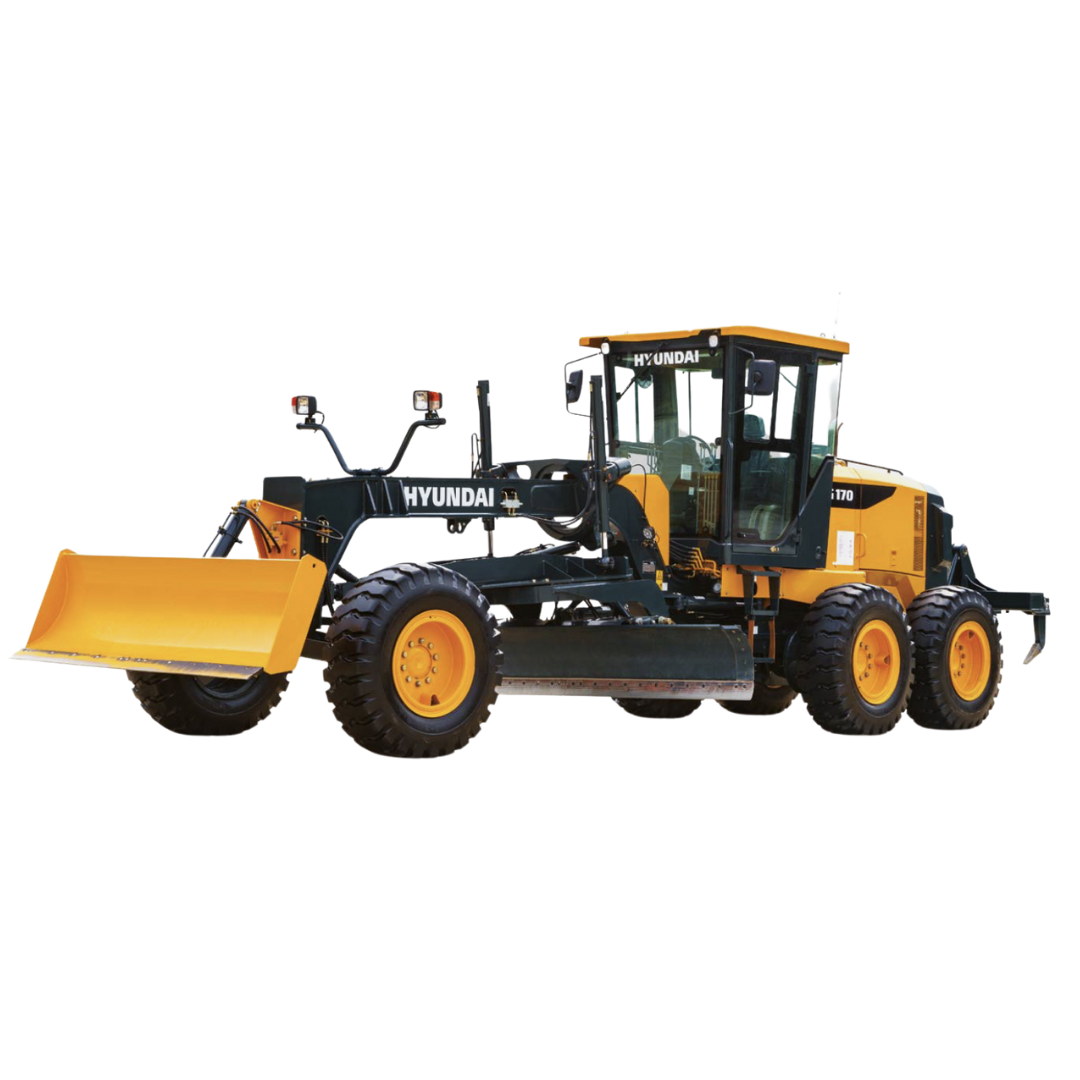

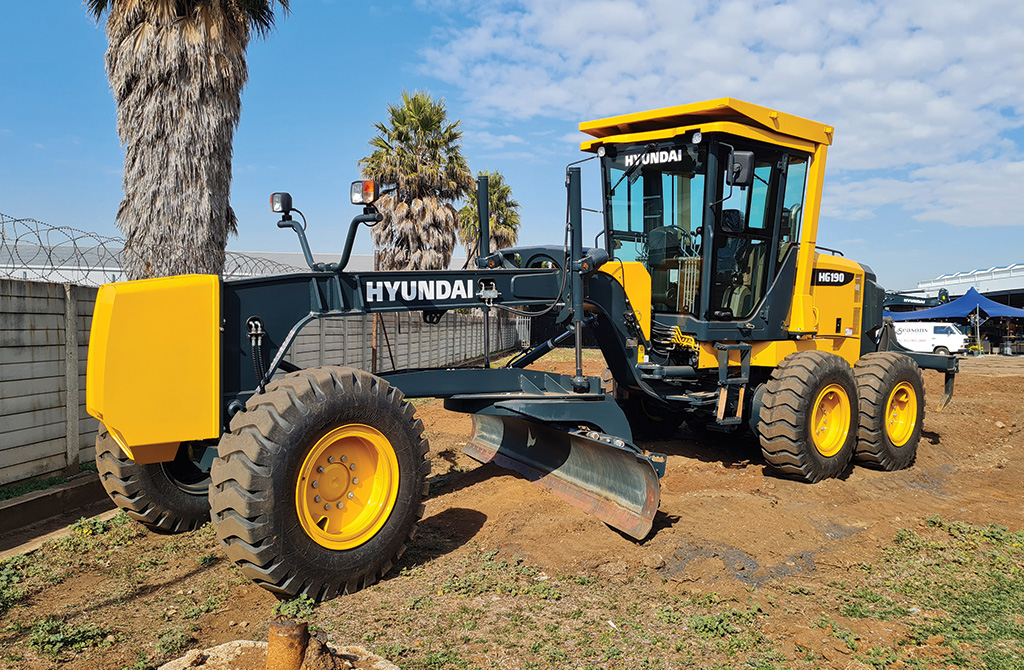

Grader

Hyundai motor graders offer several remarkable advantages that make them reliable and versatile across various terrains and industries. Designed to deliver exceptional performance, these machines are backed by Hyundai's strong commitment to providing comprehensive after-sales support for customers. Hyundai ensures the availability of spare parts through distribution centers strategically located in Jakarta and Balikpapan, offering quick and efficient service. The company also boasts a professional team of sales, spare parts, and customer service support, ensuring an unparalleled customer experience. To simplify the purchasing process, Hyundai collaborates with both local and global financing companies, making their products more accessible. As a heavy machine designed to level and shape soil surfaces, Hyundai motor graders are equipped with key components such as a front blade for lifting and leveling material and a push plate that adds weight to prevent the front wheels from lifting, ensuring optimal stability and performance.

Capacity: 14.5 & 15.8 ton

Model & Specifications

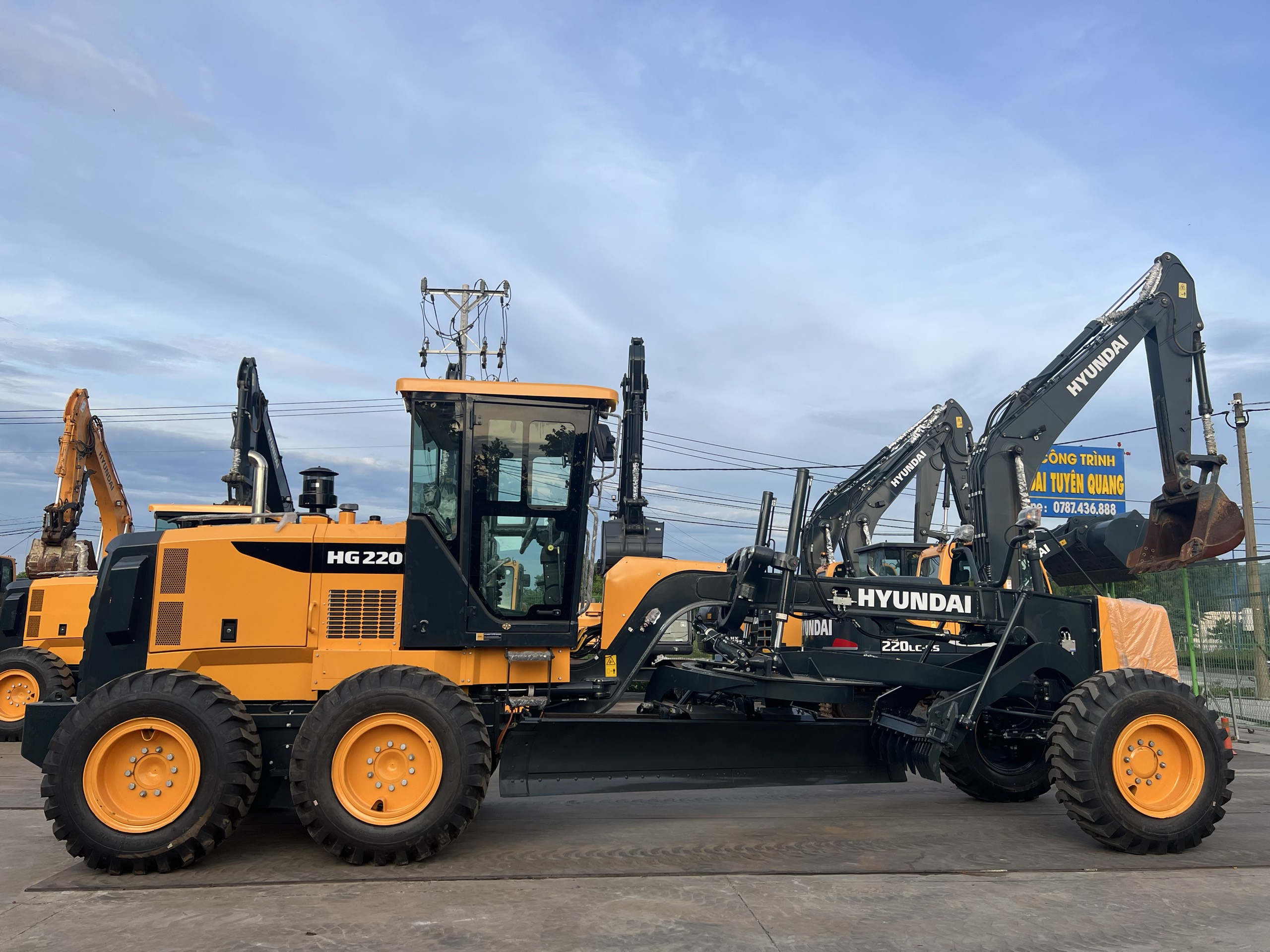

HG170 & HG220

Model	Operating Weight	Engine Model	Engine Type	Rate Power	Max. Torque	Blade Widht	Fuel Tank	Travel Speed
HG170	14.5 ton	CUMMINS 6BTA5.9	TIER 2	178hp/2200rpm	750kgf.m/1300rpm	3.658 mm	370 ℓ	49.2 km/h
HG220	15.8 ton	CUMMINS 6CTA8.3	TIER 2	215hp/2200rpm	908kgf.m/1500rpm	4.320 mm	370 ℓ	52.74 km/h
