Capacity: 30 - 35 ton
WIDE-BODY DUMP TRUCK
Wide-body Dump Trucks
Hyundai Wide Body Truck Solution not only is this truck equipped with a powerful engine, but it also delivers agile speed to enhance productivity and performance. Designed with efficiency in mind, it ensures exceptional fuel economy, ultimately reducing your operational costs. Moreover, it provides a comfortable driving experience for your operators, ensuring convenience and satisfaction during long hours of use. With its combination of power, efficiency, and operator comfort, the Hyundai Wide Body Truck stands out as the ultimate solution for your transportation needs.
Model & Specifications
| Model | Operating Weight | Engine Model | Emission | Rate Power | Rated Payload | Main Pumps Rated Flow | Fuel Tank | Hydraulic Tank | Travel speed (forward, Maximum) | Travel speed (Reverse, Maximum) | Overall length | Overall height | Overall width | Inner turning radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDT90 | 30 ton | WEICHAI 530 HORSE POWER | TIER 3 | 460hp/2,100 rpm | 60 ton | 220 ℓ/min | 500 ℓ | 200 ℓ | 49 km/h | 7.5 km/h | 9,680 mm | 3,770 mm | 3,750 mm | 9,500 mm |
| HDT90S | 30 ton | WEICHAI 460 HORSE POWER | TIER 3 | 530hp/2,100 rpm | 60 ton | 250 ℓ/min | 500 ℓ | 200 ℓ | 40 km/h | 5 km/h | 9,160 mm | 3,770 mm | 3,750 mm | 7,550 mm |

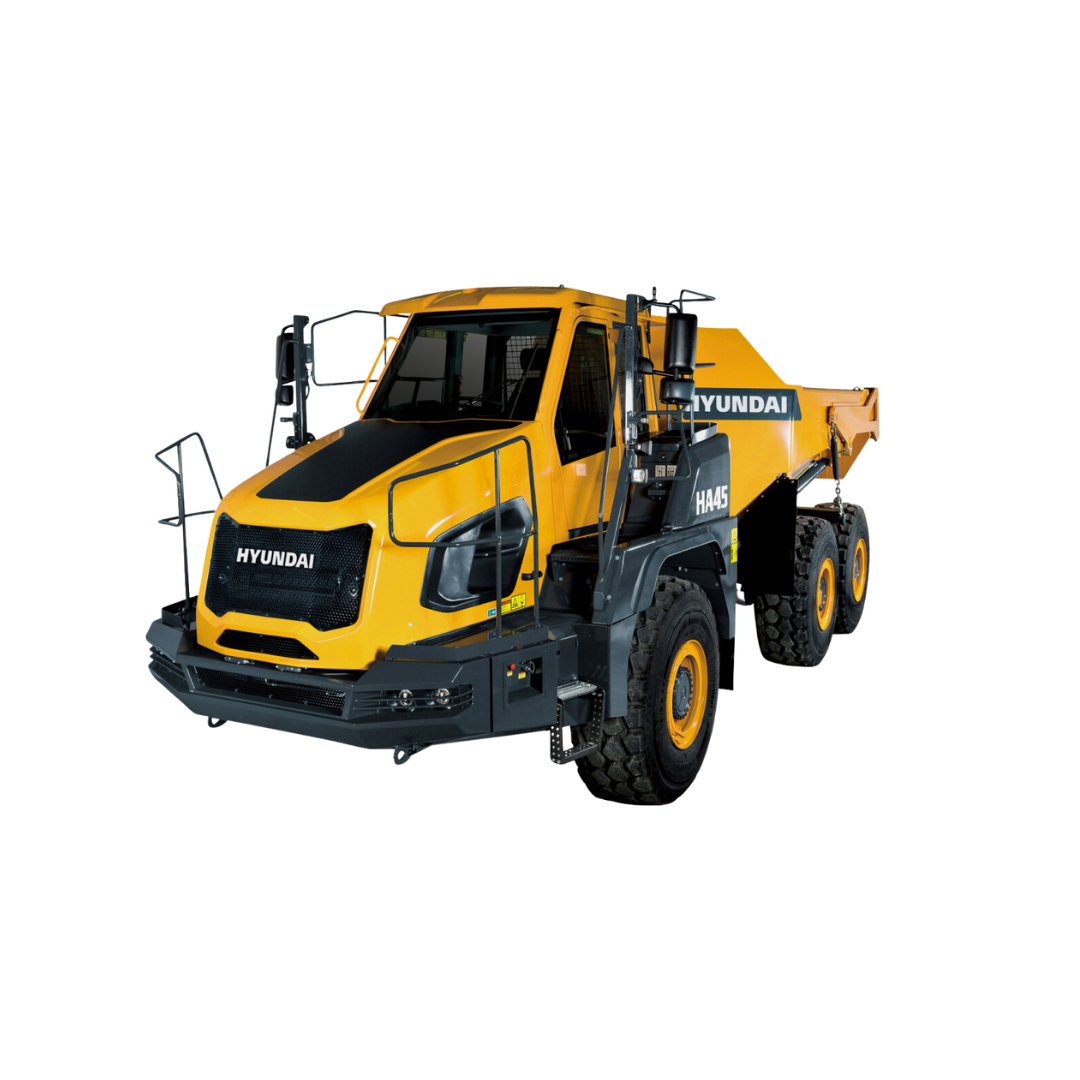

| HA45 | 30,5 ton | SCANIA DC 13 | TIER 4 FINAL | 500 hp/2,100 rpm | 41 ton | 294 ℓ/min | 530 ℓ | 100 ℓ | 55 km/h | 17 km/h | 10,673 mm | 3,850 mm | 3,990 mm | 4,215 mm |
| HDT105 | 35 ton | WEICHAI 530 HORSE POWER | TIER 3 | 560hp/2,100 rpm | 70 ton | 250 ℓ/min | 600 ℓ | 200 ℓ | 49 km/h | 7.5 km/h | 10,000 mm | 4,150 mm | 3,750 mm | 9,500 mm |
| HDT105S | 35 ton | WEICHAI 530 HORSE POWER | TIER 3 | 530hp/2,100 rpm | 70 ton | 250 ℓ/min | 600 ℓ | 200 ℓ | 40 km/h | 4 km/h | 9,360 mm | 4,160 mm | 3,750 mm | 8,000 mm |
